Mid-360S
Small But Mighty
360°×59°
FOV [1]
0.1 m
Min. Detection Range[2]
40 m
@10% Reflectivity[3]
200,000
points/second
65×65×60
L×W×H (mm)
265 g
Weight
360° Super-Wide FOV

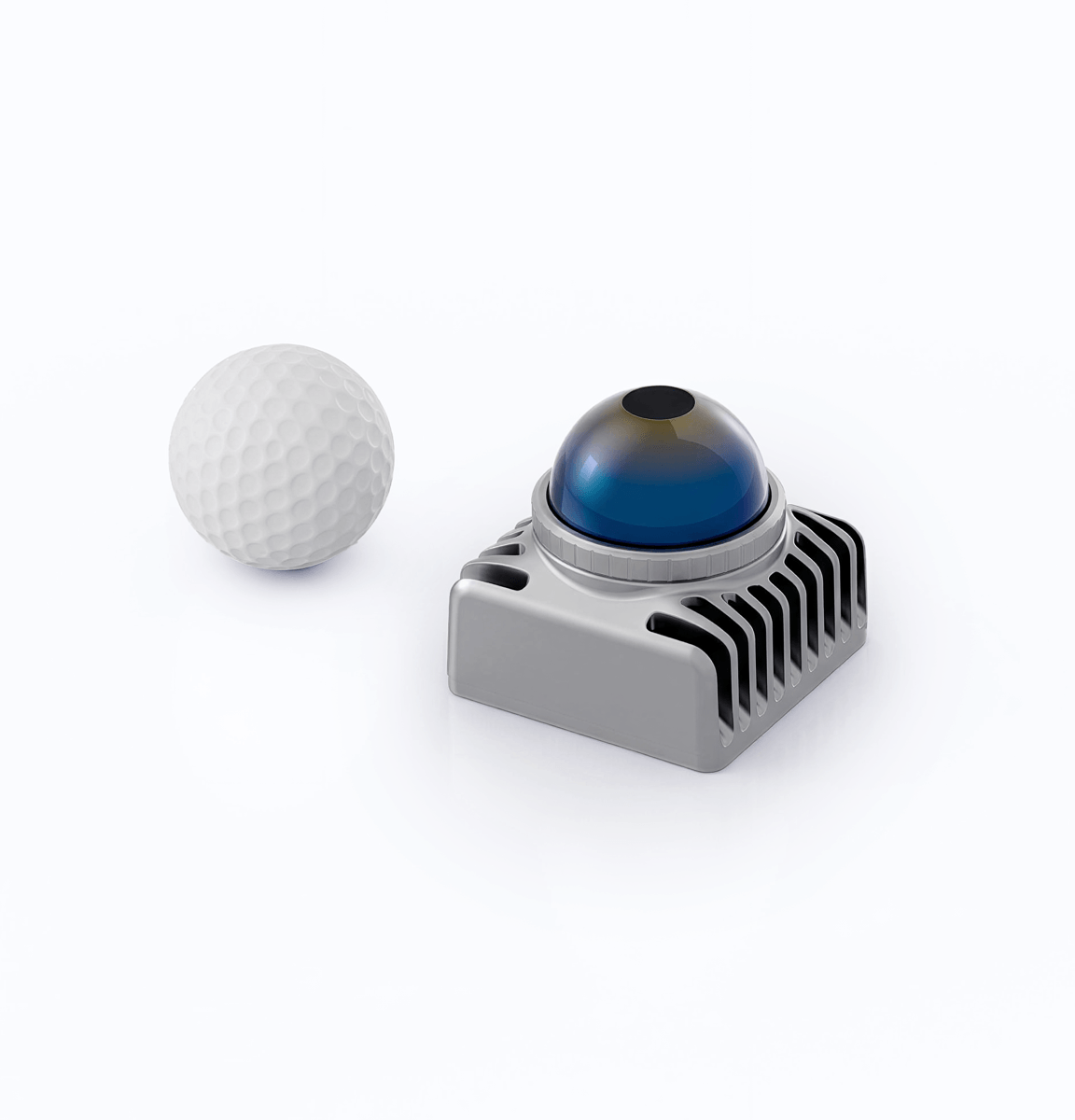

Smaller and Lighter
Greater Performance with Reduced Blind Spot
Minimum detection range of
10 cm
Mid-360S can detect objects as close as 10 cm. Its compact size makes it easy to mount and achieve zero blind spot coverage.
Active anti-interference
Mid-360S features an active anti-interference design, ensuring performance without disruption from multiple LiDAR signals, even in indoor environments.
Light or Dark
Unaffected by bright or low-light environments. Mid-360S offers consistently excellent performance with a detection range of up to 100 m (cut-off range).
Recommended Mounting Combinations
The ultimate solution for the robotics industry
Compared with traditional solutions using single-line LiDAR and depth cameras for navigation and obstacle avoidance, Mid-360S offers mobile robots a new option for environmental perception. Mid-360S, with its 360° × 59° ultra-wide FOV, can perceive more information in 3D space, helping ensure safe and efficient operation on site.
Enhanced indoor perception for greater efficiency
Compared with 2D single-line LiDAR sensors, Mid-360S delivers advanced 3D perception that enables mobile robots to collect sufficient environmental data for mapping and positioning. This eliminates the need to modify the spatial environment and greatly improves efficiency. In addition, the angular resolution of Mid-360S improves significantly with integration time. This greatly enhances small object detection to ensure safe operation.
Compatibility with outdoor scenarios brings more possibilities
Mid-360S is not affected by ambient light either indoors or outdoors. Its rich point cloud data assists mobile robots in navigation, obstacle avoidance and even detection classification - fully unlocking the potential of AI.
1. The effective range of Mid-360S varies across different FOV areas. In the vertical FOV range, the closer to the top, the shorter the effective range, and the closer to the bottom, the longer the effective range. For details, please refer to the user manual.
2. If the target object is between 0.1 m and 0.2 m from the sensor, point cloud data can be detected and output, but since the detection accuracy cannot be guaranteed, this data is for reference only.
3. Mid-360S has a maximum detection range of 100 m (cut-off range). At an ambient temperature of 25°C, the typical maximum detection distance is 40 m when the target object has a surface reflectivity of 10%.
